Precision TIG Welding Machines

We are Authorized Distributor, Dealer, Supplier of Precision TIG Welding Machines. We also provide Welding Machines On Rental / Hire / Hiring Services and our setup is situated in Pune, Maharashtra, India.

ecoHot Heat Pumps

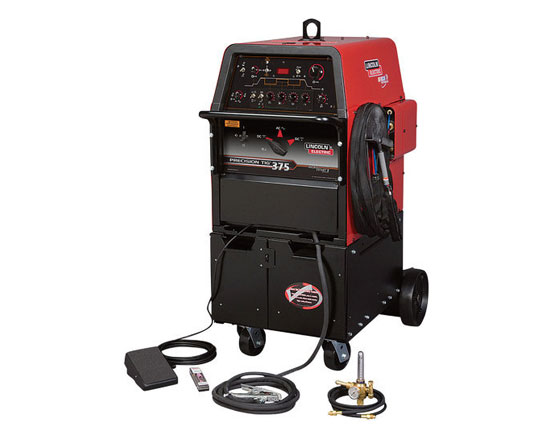

Precision TIG Welding Machines

Brand Lincoln
Suitable For Welding Rod 1-2mm, 2-3mm
Net Weight 683.00 (309.81 kg)
Efficiency 85 %
Frequency 50/60Hz
Input Power 208/230/460/1/60
Rated Output 275A/40% and 225A/60%
Input Current 40% Duty Cycle: 104/94/47A and 60% Duty Cycle: 86/78/39
Output Range 2-340A AC and 2-340A DC
Max OCV 75V
Dimensions 1262 mm x 711 mm x 1041 mm

    Features :-
  • AC Auto-Balance automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum.
  • Or, take full control – adjust the AC Balance to increase or decrease cleaning action or penetration on aluminum.
  • Delivers the widest output range in its class with an amperage range of 2 to 340 amps.
  • Upgrade with the optional Advanced Pulse Control panel to enable better control over heat input, resulting in less warping and distortion on thin metals.
  • The Precision TIG 275 features the patented Micro-Start II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills

    Additional Information :-
  • Item Code: TIG275



Request a quote
