Portable ARC Welding Machines

We are Authorized Distributor, Dealer, Supplier of Portable ARC Welding Machines Product. We also provide Welding Machines On Rental / Hire / Hiring Services and our setup is situated in Pune, Maharashtra, India.

ecoHot Heat Pumps

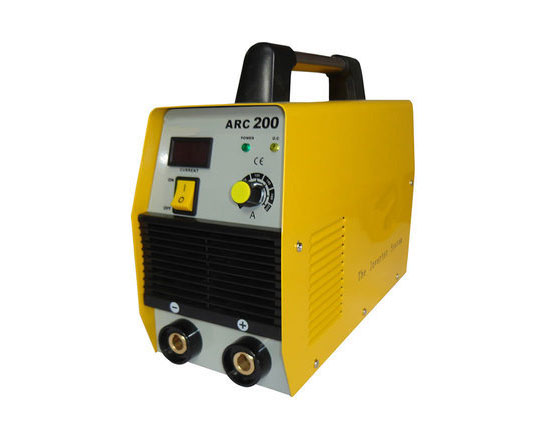

Portable ARC Welding Machine

Phase Three Phase
Welding Machine Type ARC Welding
Input Power 200 KVA
Application/Usage Industrial

Owing to our knowledge in this field, we are busy in offering Arc 200 Welding Machine Our offered welding arc machine is designed by utilizing quality assured material & latest technology that improves its performance. In addition to this, our offered welding arc machines are widely famous among clients for its quality. Our patrons can purchase the whole range of welding arc machines at pocket-friendly rates.

    Features :-
  • Smooth Edges
  • Easy to maintain
  • Better Performance


    Other Details :-
  • With the function of auto-compensation against power fluctuation, And the output welding current will be stable.
  • Having the function of auto-protection against over-voltage and over current.
  • Having powerful arc-force.
  • Reliable quality with small dimension and weight as well as high efficiency.
  • Able to weld basic and acid electrodes.
  • Applicable to low carbon steel. Medium Carton steel and alloy steel.

Specifications :-

Parameter Model ARC 200 ARC 250 ARC 300 ARC 400
Input Voltage(V) AC 220V ±15% AC 380V ±15% AC 380V ±15% AC 380V ±15%
Frequency(HZ) 50/60 50/60 50/60 50/60
Rated Input Current(A) 43.6 14.4 21 27.6
No-load Voltage(V) 58 54 54 59
Output Current Range(A) 30-200 20-250 30-200 40-400
Rated Output Voltage(V) 28 30 32 36
Duty Cycle (%) 60 60 60 60
No-load Loss (W) 40 60 60 60
Efficiency (%) 80 85 85 85
Power Factor 0.73 0.93 0.93 0.93
Insulation Grade F F F F
Housing Protection Grace IP 21 IP 21 IP 21 IP 21
Net Weight (kg) 8 17.5 17.5 26.5
Dimension (MM) 375x155x232 480x204x303 480x204x303 665x306x432
